Jump into lloT applications with a combination of machine,safety and information control. EtherNet/IP, EtherCAT ports.Up to 12 axes of motion

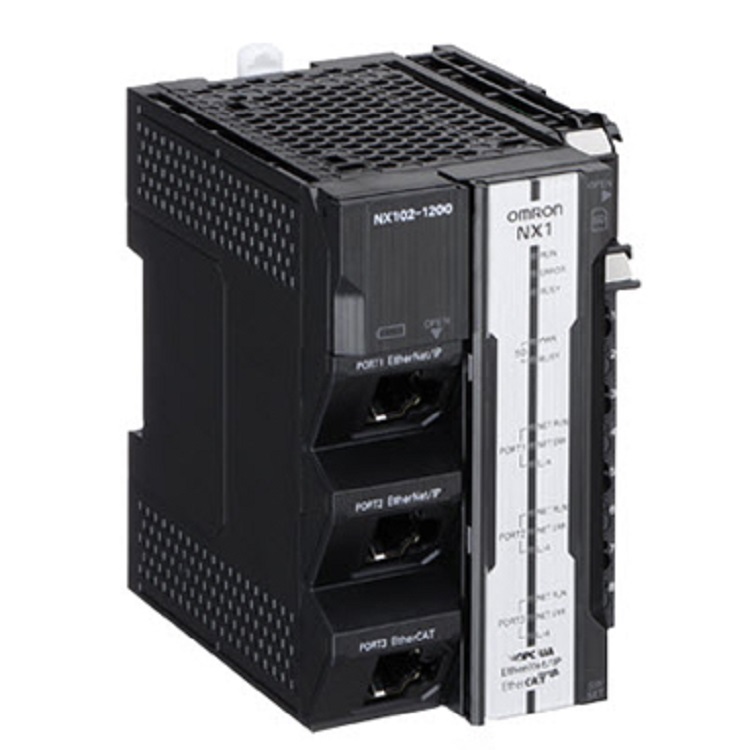

NX1 is the next standard in automation control that is IIOT ready and designed to meet many modern manufacturing needs.

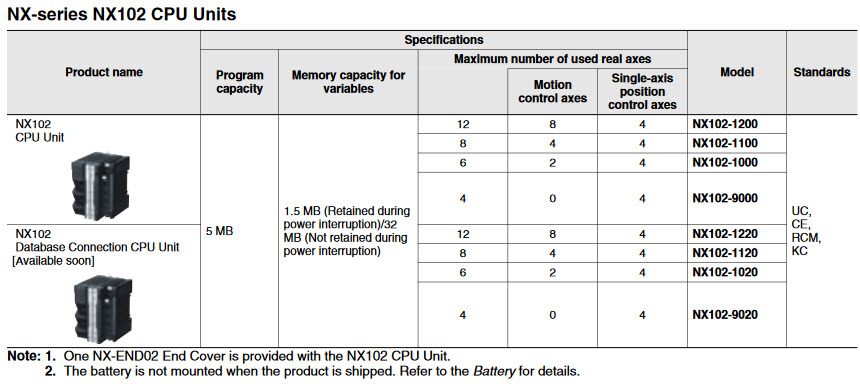

NX102-1000

NX102-1120

NX102-1020

NX102-1100

NX102-9020

NX102-9000

NX102-1200

NX102-1220

• Real-time data traceability

• Secure information transfer (OPC UA server built-in)

• Safety integration

• Quality control

• Advanced machine control

Product highlights:

• Fast and accurate control by synchronizing all machine devices with the PLC and Motion Engines

• Three built-in industrial Ethernet ports

• OPC UA server functionality

• Up to 12 axes of control via EtherCAT

• Up to 32 local NX I/O Units

• DC power supply without battery backup

• Fully conforms to IEC 61131-3 standard programming

• PLCopen Function Blocks for Motion Control allow users to create complex programs quickly and easily

• Direct connection to a database, with no special unit, software, or middleware required (NX102-__20)

Built-in OPC UA Server:

• Comes standard in all models

• Securely transfer data to external network

• Minimize IT maintenance cost of middleware and PCs

• Easy setup to directly connect to host system

• Reliable international communication protocol for IIOT applications

SQL Client embedded:

• Eliminate PC points of failures on the line, reducing downtime risk

• Minimize IT maintenance cost of middleware and PCs

• Machine performance unaffected by IT data gathering

• Offline programming by OEM with online connection and database testing

• “Spool” data locally at the controller in case of communication failure

• Function Block (FB) programming in Ladder or Structured Text (ST) with no SQL code knowledge required
