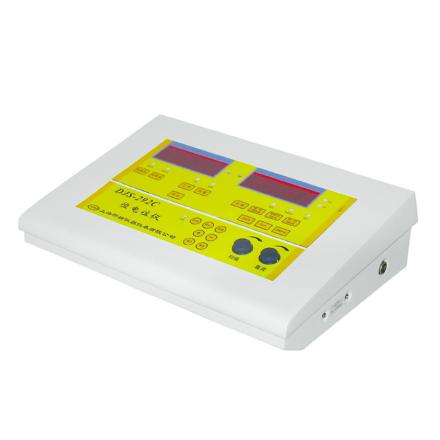

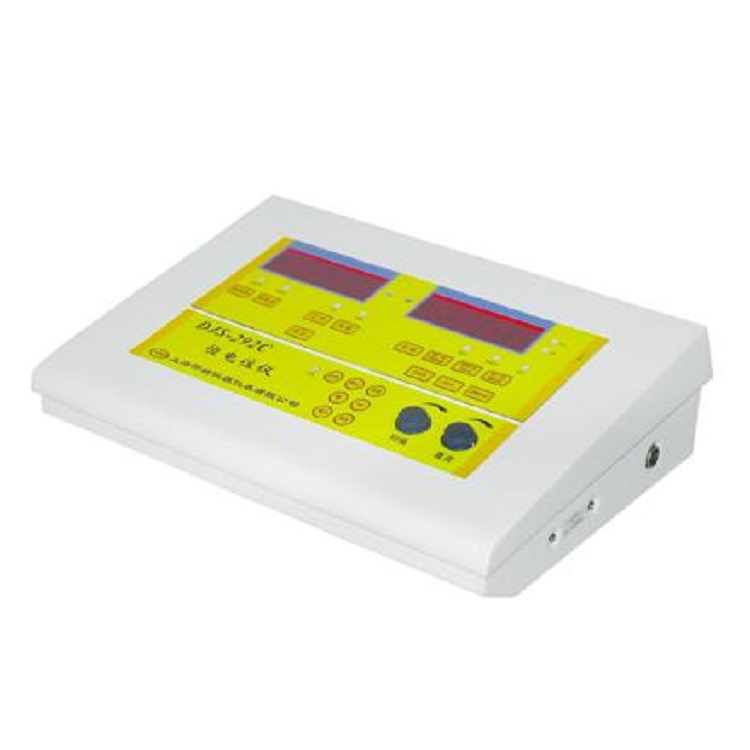

xinrui DJS-292C potentiostat

DJS-292 series potentiostat is an electrochemical testing instrument, which can be widely used in the study of electrode process dynamics, chemical power supply, electroplating, metal corrosion, electrochemical analysis and organic electrochemical synthesis.

Potential control range: ±2V, ±4V, continuously adjustable.

Current control range: ±2 μ A ~ ±200mA, a total of six gears can be continuously adjusted.

Cell voltage range: ±20V.

Potentiostatic characteristic: ±0.1% (F ·S).

Constant current characteristic: ±1% (F ·S).

Conversion rate: greater than 0.1V/ μ S.

* small resolution: 1nA.

Stability: ±0.5% (F ·S) / 24 hours.

Input impedance of reference electrode: not less than 109 Ω.

Shape size; 320x240x90mm.

Touch keyboard, large screen LED dual digital display, can display potentiostatic and galvanostatic at the same time.

Using low drift, high precision circuit system, * high power integrated circuit.

Equipped with super power protection and automatic alarm function, work *.

The input impedance of the external signal is 1K Ω, and the amplitude is not greater than 2Vpp.

Equipped with slot voltage, reference potential, working current output Jack and signal input Jack.

DJS- 292C is compatible with all functions of DJS- 292B, and is equipped with 0 ~ ±peak adjustable ultra-low frequency ladder scanning function.

DJS- 292D is compatible with all functions of DJS- 292C, although it is equipped with built-in printer and USB interface, it can be connected to PC computer. The random complete set is equipped with computer working software, which can realize data storage, real-time dynamic display (TmurVrMagneVwMagneVi), and the displayed graphics can be enlarged or reduced. The display curves are as follows: Vr-T,Vw-T,Vi-T,VIgi-T,Vr-Vi,Vw-Vi, can be separated or within the same coordinate and can be distinguished by chromatic aberration lines; at the same time, the data of Vr,Vi,VIgi can be displayed.
