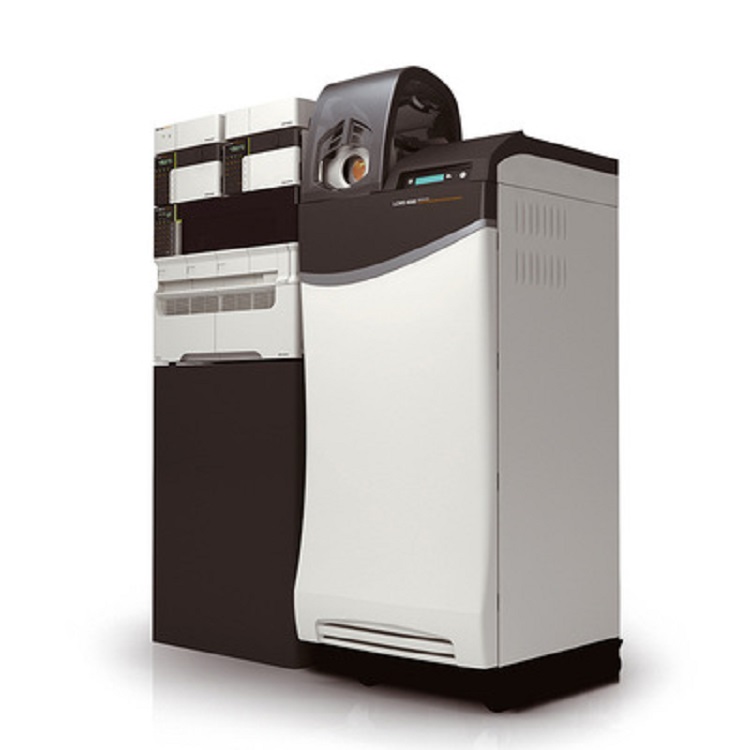

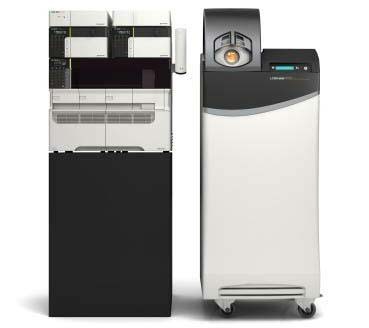

Product name: Shimadzu liquid chromatography-mass spectrometry LCMS-8080.

A LC/MS/MS system designed by LCMS-8080, to achieve high sensitivity analysis. With the same level of equipment in the leading level of sensitivity and excellent quantification.

The LCMS- 8080 triple quadrupole LC/MS/MS system combines the leading level of sensitivity and excellent quantitative capability in the same class. The key factor to achieve high sensitivity is how to make more ions reach the detector efficiently. Focus the spray flow ejected from the ionization interface, heat the coaxial gas with high efficiency of thermal ionization, remove neutral pollutants, accurately introduce ions into the HSID* in the quality analysis device, laminar flow technology that can quickly transport a large number of ions to the detector with high transmittance, and LCMS-8080 integrates the above technologies to achieve high sensitivity.

Application areas:

It is used in a wide range of fields, such as pharmaceutical development, manufacturing, clinical research, food, environmental analysis, drug screening and so on. Reliable data can be obtained in the high-precision quantitative analysis of trace components. The control analysis software is equipped with LabSolutions which strongly supports quantitative analysis. Provide an analytical environment for easy work. A LC/MS/MS system designed by LCMS-8080, to achieve high sensitivity analysis.

To achieve high sensitivity technology-multi-directional support sensitivity and durability technology-.

High temperature heated ion source.

Plug and play ion source.

Excellent high sensitivity technology is condensed in the small longitudinal fuselage.

High temperature heated ion source.

CoaxialHotGas.

High temperature gas is ejected from all sides to improve the efficiency of solvent removal. Compounds in a wide range of fields can be determined with high sensitivity by ESI. The decrease in sensitivity can be suppressed even at high flow rates, and stable analysis can be achieved in the high flow area where the max feed flow rate is 3 mL/min.

A multi-right-angle heating interface is designed to introduce more ions and remove noise components at the same time to reduce chemical noise.

The excess spray is discharged by the fast exhaust system, which improves the life of the device. There is no need to replace the ion source and can correspond to a wide range of samples.

Plug and play ion source.

The device can be set up with plug and play land, and there is no need for tedious operation. No cable design, no cable connection operation is required. Gas piping and supply voltage cable are completely excluded from the maintenance scope, and there is no need to contact gas piping and cable in maintenance operation. The device is easy to disassemble and saves maintenance time.

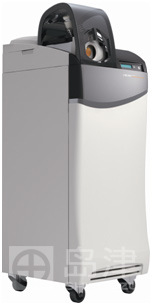

Excellent high sensitivity technology is condensed in the small longitudinal fuselage.

LCMS-8080 uses a small vertical fuselage to incorporate unparalleled high sensitivity technology into a small space that only covers an area of 50cm × 50cm.

Excellent sensitivity (1)-leading level of sensitivity in devices of the same grade-.

High temperature heating ion source supports improved sensitivity.

Achieve the detection limit of sub-Fick level.

The use of unique technology coaxial heating gas and H S I D technology to achieve a leading level of sensitivity. The detection limit is greatly reduced. L C M S-8080 station is at the peak of sensitivity, which widely corresponds to all target samples and provides high sensitivity information.
