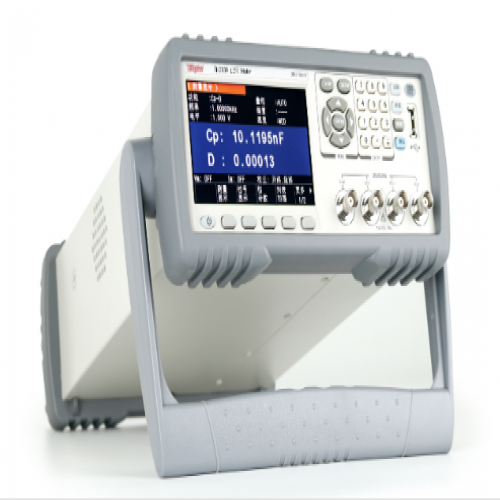

Precise and compact LCR digital bridge TH2830

TH283X series is a new generation of low budget, high-performance compact LCR digital bridge. It adopts the latest technology and high-density circuit design to concentrate the essence of large LCR tester, compact and compact. Cancel traditional mechanical power switches and adopt software controlled power switches. The basic accuracy of 0.05% and good testing stability are comparable to high-end models. Equipped with a 4.3-inch LCD display screen and a newly upgraded interface system, it is aesthetically pleasing and easy to operate. The instrument provides rich interfaces and is compatible with standard SCPI instructions, making it easy to form various testing systems to meet the needs of inspection, production, and scientific research.

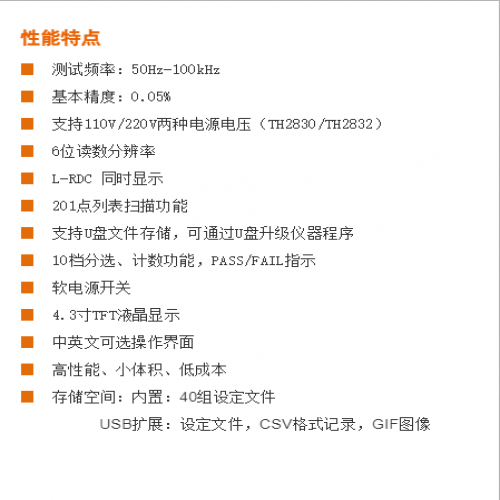

• A. High performance, small size (can simultaneously test DC resistance RDC) functional characteristics



  The 4.3-inch large LCD display screen can simultaneously display set parameters and test results (can simultaneously test and display DC resistance RDC), and the corresponding display function keys can provide faster operation. The instrument also provides measurement display 2 function, which facilitates users to quickly sort and set up test products and display results.




  B. Empty fixture judgment





• This function can help users troubleshoot poor contact or short circuits in testing fixtures. If this function is turned on, the instrument will automatically multiply the nominal value by 0.05 on the limit setting page as the lower limit, and multiply the nominal value by 100 as the upper limit. Values beyond this upper and lower limit range are considered as open or short circuits in the fixture, and the instrument will stop outputting the sorting result signal of the Handler to prevent incorrect judgment results.

• C. Intelligent zeroing function

•







       The TH2830 series offers two calibration methods. One method is to use insertion to perform open circuit and short circuit correction on all frequency points. Another method is to perform open circuit, short circuit, and load correction on the current set frequency point. We can provide 201 calibration points.




  D. Multi point list testing



        The list scanning function can automatically scan and test up to 201 points for testing frequency, testing level, or DC bias. By using this function, users can quickly and clearly obtain the trend of characteristic changes of the tested object, and judge the applicability of the tested part in practical applications.




  E. Convenient and efficient file sorting and testing function



   The TH2830 has a built-in comparison function that can divide the tested component into up to 10 levels (BIN1 to BIN9 and BIN OUT). 9 pairs of main parameter limits and one pair of sub parameter limit settings can be set. And it can be visually and clearly displayed to users through file number numbers or counting on the interface, as well as providing sound and light alarm functions.




  F. Rich interface functions



     The TH2830 series tester provides users with a Handler interface, which is mainly used for outputting instrument sorting results. When the instrument is used in an automatic component sorting testing system, this interface provides communication signals with the system and sorting result output signals. The tester also provides users with RS232C, USB DEVICE, GPIB (optional) interfaces to achieve remote data communication. These interfaces are highly suitable for the requirements of automation applications in the current market.

application

Passive components:

Impedance parameter evaluation of capacitors, inductors, magnetic cores, resistors, piezoelectric devices, transformers, chip components, and network elements, etc

Other components:

Impedance evaluation of printed circuit boards, relays, switches, cables, batteries, etc

Technical Parameter

•


  产品型号			TH2830	TH2832	TH2832D
  显示			4.3 TFT LCD显示器480×272
  读数			6位读数分辨率
  基本测量准确度 (详见技术说明书)		LCRZ	0.05%
  		DCR	0.1%
  测试信号频率			50Hz - 100kHz	20Hz - 200kHz   , 步进10mHz	20Hz - 300kHz   , 步进10mHz
  信号源输出阻抗			30Ω、100Ω可选
  AC测试信号电平			电压：10mV   - 2Vrms，最小分辨率：10mV   准确度：10%x设定电压+2mV
  			电流：100μA - 20mArms，最小分辨率：0.1mA
  RDC测试信号电平			1V	5mV - 2V
  DC偏置电压源			------	0V - ±   5V最小分辨率：0.5mV,   准确度：1%x设定电压+5mV
  			------	0mA - ±50mA最小分辨率：0.5μA
  测试参数			L、C、R、|Z|、D、Q、|Y|、G、X、 θd、θr、RDC、Vm、Im，△%
  DCR显示范围			0.00001 Ω－999.999MΩ
  LCR参数显示范围			|Z|,R,X	0.00001Ω   -  99.9999MΩ
  			|Y|, G, B	0.00001μS   -  99.9999S
  			C	0.00001pF -   9.99999F
  			L	0.00001μH   -  99.9999kH
  			D	0.00001   -  9.99999
  			Q	0.00001   -  99999.9
  			θ(DEG)	-179.999º   -  179.999º
  			θ(RAD)	-3.14159   -  3.14159
  			Δ%	-999.999%   -  999.999%
  测量结果显示			测量显示1：测试状态及结果；测量显示2：分选状态及结果
  列表扫描			201点，扫描参数： 测试频率、AC电压、AC电流、DC BIAS电压、DC BIAS电流
  图形扫描分析			------
  测量速度			快速:12.5ms，中速:83ms，慢速:167ms
  等效电路			串联, 并联
  量程方式			自动, 保持
  触发方式			内部, 手动, 外部, 总线
  平均次数			1 - 255
  清零功能			开路, 短路, 负载
  数学运算			直读, ΔABS, Δ%
  触发延时时间设定			0 - 999s, 1ms步进
  比较器功能			10档分选，BIN1 - BIN9、NG、AUX
  			档计数功能
  			PASS、FAIL前面板显示
  存储器			内部：40组仪器内置测试设定文件， USB存储器：设定文件、GIF图像、CSV数据文件
  接口	控制接口		HANDLER（TH2832D选配）
  	通讯接口		USB HOST、RS232C、RS485(选件){需RS232转RS485转换器}、GPIB(选件)、SCANNER接口（选件）
  	存储器接口		USB DEVICE
  上架体积（mm）			215(W)x88(H)x335(D)
  外形体积（mm）			235(W)x105(H)x360(D)
  重量			3.6kg
  供电			220/110V			24V（DC）




• 附件

标配
配件名称	型号
带盒四端绝缘带锁Kelvin测试线	TH26011CS
夹具	TH26048A
短路片	TH26010

选配
配件名称	型号
磁环夹具(片式)	TH26007A
磁环夹具	TH26008A
带盒贴片测试线	TH26009B
夹具	TH26047
测试夹具	TH26062
测试夹具	TH26063
高频贴片夹具	TH26108C
电介质测试夹具	TH26077
